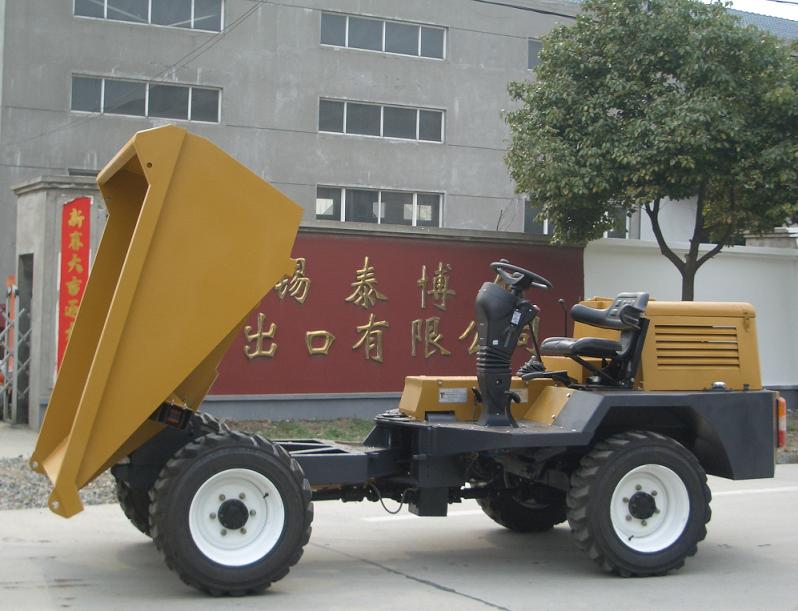

SD30

Name: Site Dumper

Category: Construction Dumper

Features:

 ◊ Hydraulic Tipping System

 ◊ Front tip, side tip(180 degree), self load shovel provided.

 ◊ 5 front speeds,5 reverse speed

 ◊ Full engine casing, luxury seat, Driving shield.

 ◊ 40’HQ container can load 3-6units

 ◊ Famous brand driving axel from Fujian province.

 ◊ Hydraulic steering and braking, optional hydraulic steering.

 ◊ Automobile chassis, better design than other factories.

Specifications:

ModelSD30(FJ30)
Payload3000kg
Unloaded Weight2500kg
Skip Capacity1.5m³
Max. Speeds25km/h
Hand Braking Gradient18%
Max. grade ability36%
Sliding Distance75m
Braking Distance≤2.5m     Payload 10km/h
Min. turning radius8.45m
Min. ground clearance248mm
Acoustical noise≤86db(A)
Discharging angle48.4°
Discharging time8S
Working pressure of hydraulic system16mpa
Wheel base2000mm
Wheel tread1470mm
Power of Diesel Engine30kw(NB485)       38kw(F3L912)
Speed of Diesel Engine2600r/min (NB485)     2500r/min(F3L912)
Overall dimensions (L×W×H)3900×1795×1820 (mm)
40HQ loads 6units
blue color
rops
first unit purchased by Spain customer in 2009
with canopy
self load type
rotary tip
