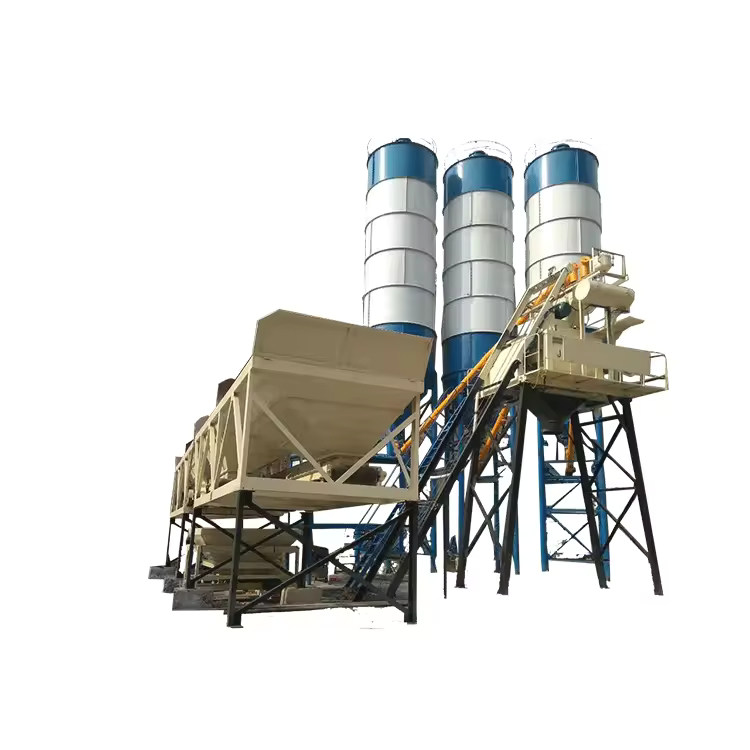

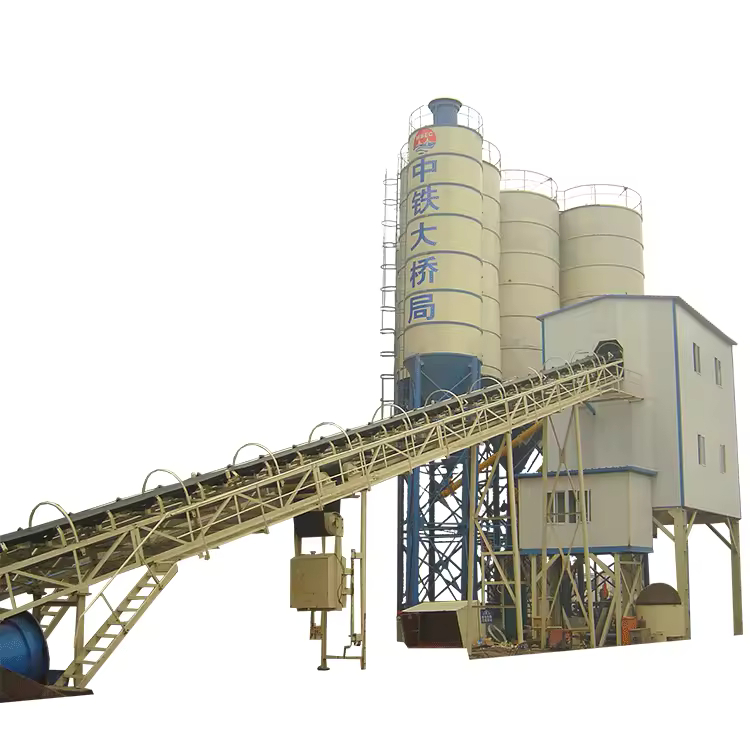

90CBM concrete batching plant
Name: 90cbm Concrete Batching Plant
Category: Stationary concrete batching plant
Features:
5*40’HQ can load one complete set including all parts.
Various top quality make concrete mixer, famous control system,compact design.
Specification(form):
CBP90 concrete mixing plant is one of the middle size stationary mixing plants . Which consists of mixer, batch machine, scaling system and controlling system. We have been exporting to ASIA, AFRICA for more than 20years.
Production capacity per hour:≤90m³ | |

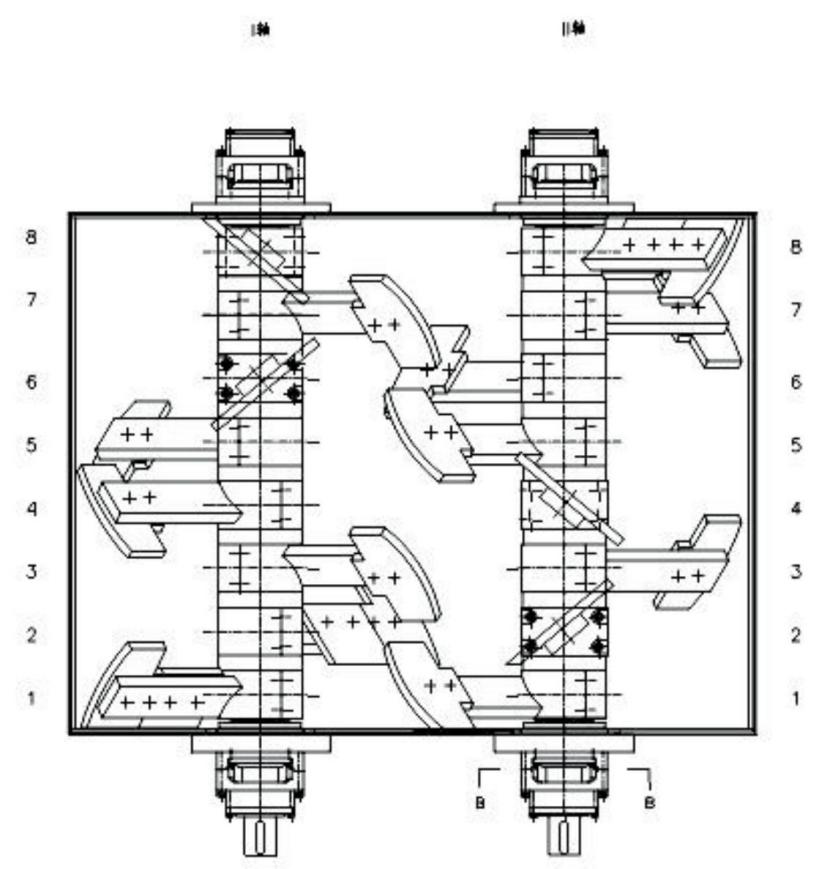

Twin Shaft Mixer | JS1500 |
Aggregate scale | (0-3600)kg±2% |
Water scale | (0-400)kg±1% |
Addictive scale | (0-40)kg±1% |
Aggregate storate bin | 4*12m³ |
Cement silo | 60ton |
Fly ash silo | 60 ton |
Discharging height | 3.8m |
Cement scale | (0-800)kg±1% |
Fly ash scale | (0-400)kg±1% |
Total Power (no screw conveyor) | 115kw |
Weighing bin | 4*1m³ |
Screw conveyor | 12mφ273 mm |
Screw conveyor | 12mφ219 mm |
