30CBM HZS30 concrete batch plant
Name: 30cbm HZS30 Concrete Batching Plant
Category: Stationary concrete batching plant
Features: 1*40’HQ can load one complete set including all parts.
Specification(form):
HZS30, also named CBP30 concrete mixing plant 30cubic meter capacity, is one of the smallest stationary mixing plants .
Components of HZS30,CBP30 model concrete batching plant:
- JS500 concrete mixer with sliding track hopper, manual discharging gate or hydraulic or pneumatic discharging gate. Outriggers length ranges from 1m, 2m to 3.8m or customized by customers.
- PLD1200 batching machine with either 3bins or 4bins. Pneumatic discharge for aggregate.
- Manual hopper of 5cubic meter capacity for bagged cement.
- Operating room with full automatic dosing system, PC and printer, AC.
- Cement, aggregate, water, additive agent, weight weighing system included
- Air delivery system is prepared for pneumatic working elements.
Configurations of HZS30, CBP30 concrete batching plant:
| Item | Unit | Parameter |
| Max Productivity | m3/h | 30 |
| Mixer Model | JS500 | |
| Volume of Mixer | m3 | 0.5 |
| Batching Machine-Material Storage Bins | 3pcs *4m³ | |
| Batching Machine-Weighing Bins | liter | 1200 |
| Capacity Aggregate Scale | kg | 0-2000(±2%) |
| Max. Aggregate Size | mm | ≤60 |
| Capacity of Cement Scale | kg | 0-300(±2%) |
| Capacity of Water Scale | kg | 0-300(±2%) |
| Capacity of Addictive Scale | Kg | 0-40(±2%) |
| Volume of Manual Cement Loading Hopper | cbm/ton | 2.5/5 |
| Total Power | kW | 55 |
| Total Weight | t | 20 |
| Area for installation | ㎡ | 18*15 |
| Discharging height | m | 3.8 |
| Container numbers for shipment | NOS | 1*40’HQ |
Working principle of HZS30 concrete batching plant:
The automated control system operates through a systematic process:
1. Launch the control software and log into the operational interface.
2. Configure or retrieve production parameters, including recipe number, concrete grade, slump, and total production volume.
3. Initiate the production sequence.
4. The software/PLC sends commands to each component, coordinating material feeding, precise measurement, loading into the mixer, mixing, and discharge.
5. During production, the software monitors for anomalies. If issues arise, it triggers visual and audible alarms on the computer screen or indicator displays, allowing the operator to halt production until problems are resolved.
6. For material feeding, electric motors, butterfly valves, and load cells respond automatically to digital signals, ensuring accurate and timely delivery.
7. A high-pressure air system provides the necessary force to operate unloading gates, such as those for aggregate bins, scale hoppers, and the concrete mixer discharge gate.
8. The software maintains continuous production until the set volume is reached, unless an emergency stop is activated or the system is switched to manual mode.

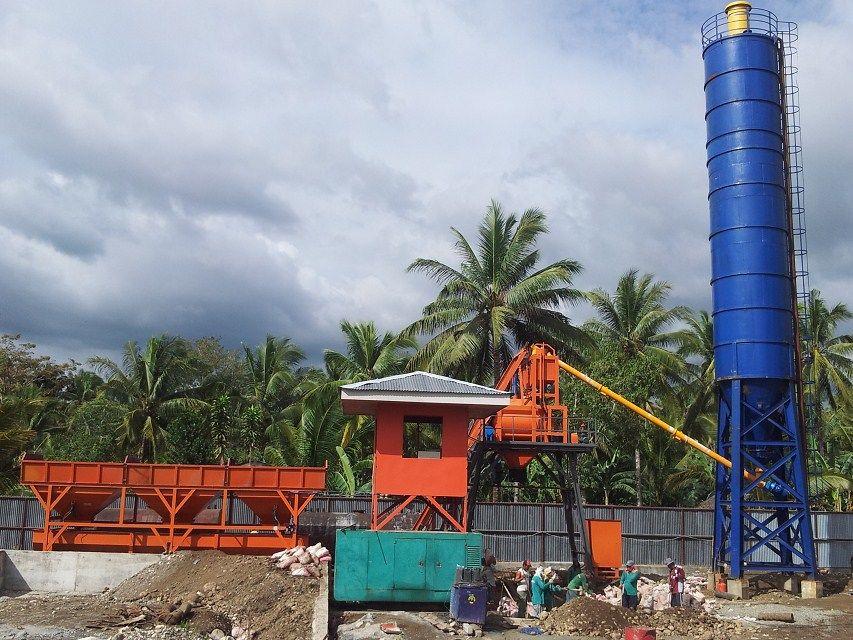

Successful installation of CBP30 concrete batching plant in different countries:
